Boosting Production Capacity Without Additional Machinery Investment

AMIC frequently assists engineering shops, particularly in the aerospace sector, to enhance their machining processes. Long-term contracts often lead to entrenched machining methods. When faced with increased production demands, clients seek AMIC’s expertise to maximise their current machinery's efficiency, avoiding immediate capital expenditures on new equipment.

Challenges include:

• Improving throughput without new machinery.
• Achieving necessary tolerances in machining processes.
• Reducing cycle times
• Improving output quality
• Extending cutting tool lifespan

Optimization Process - Methodology

AMIC employed a comprehensive methodology to test the effectiveness of Productive Machines' technology:

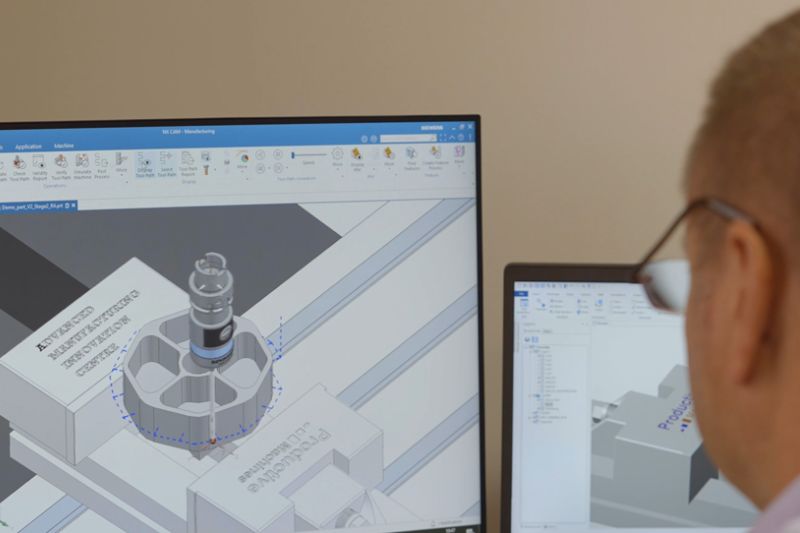

1. Component Design: Using Siemens NX CAM software, a typical 3-axis aluminium component was designed, incorporating common milling strategies like mill contour, mill planar, adaptive contouring, and hole milling.
2. Probe Accuracy: Using Autoclock from MSP ensures all the probing measurements are accurate.
3. Part Alignment: Using MSP’s NC-PartLocator automatically align the part in the machine so there is no need for manual intervention or complex fixturing.
4. Initial Machining: The part was machined using standard parameters provided by cutting tool manufacturers and an experienced machinist.
5. Optimization with SenseNC Finesse: AMIC utilized SenseNC Finesse, an autonomous optimization software plugin for CAM systems developed by Productive Machines. This solution optimizes spindle speeds and feed rates against chatter vibrations.
6. Comparative Analysis: A second part was machined using the optimized toolpaths. Cycle time, surface roughness, and feature alignment were compared between the initial and optimized parts.

The use of Productive Machines' Finesse plugin yielded remarkable improvements:

• Overall Cycle Time: Reduced by 21%.
• Roughing Operation Cycle Time: Reduced by up to 35%.
• Surface Finish: Improved by 40%.
• Chatter Vibration: Eliminated in both roughing and finishing operations.
• Feature Alignment: Achieved through MSP technology, eliminating feature mismatches when turning the part over.

1. Cycle Time Reduction: The optimized machining process resulted in a 20% reduction in overall cycle time. The roughing operation cycle time saw a substantial decrease of up to 35%, while the finishing operation cycle time slightly increased to achieve a 50% improvement in surface finish.
2. Quality Enhancement: The elimination of chatter vibrations in both roughing and finishing operations led to a significant enhancement in the surface quality of the machined part.
3. Feature Alignment: MSP technology ensured precise alignment of component features, resolving issues with feature mismatches.
4. Cost Savings and Efficiency: By reducing cycle times and improving surface quality without investing in new machinery, AMIC demonstrated how manufacturers could achieve significant cost savings and efficiency gains.

The AMIC Technology Centre’s collaboration with Productive Machines underscores the potential of advanced CAM optimization solutions to significantly enhance manufacturing efficiency. This case study illustrates a viable pathway for manufacturers to boost productivity and reduce costs without the need for additional capital investments in new machinery.
